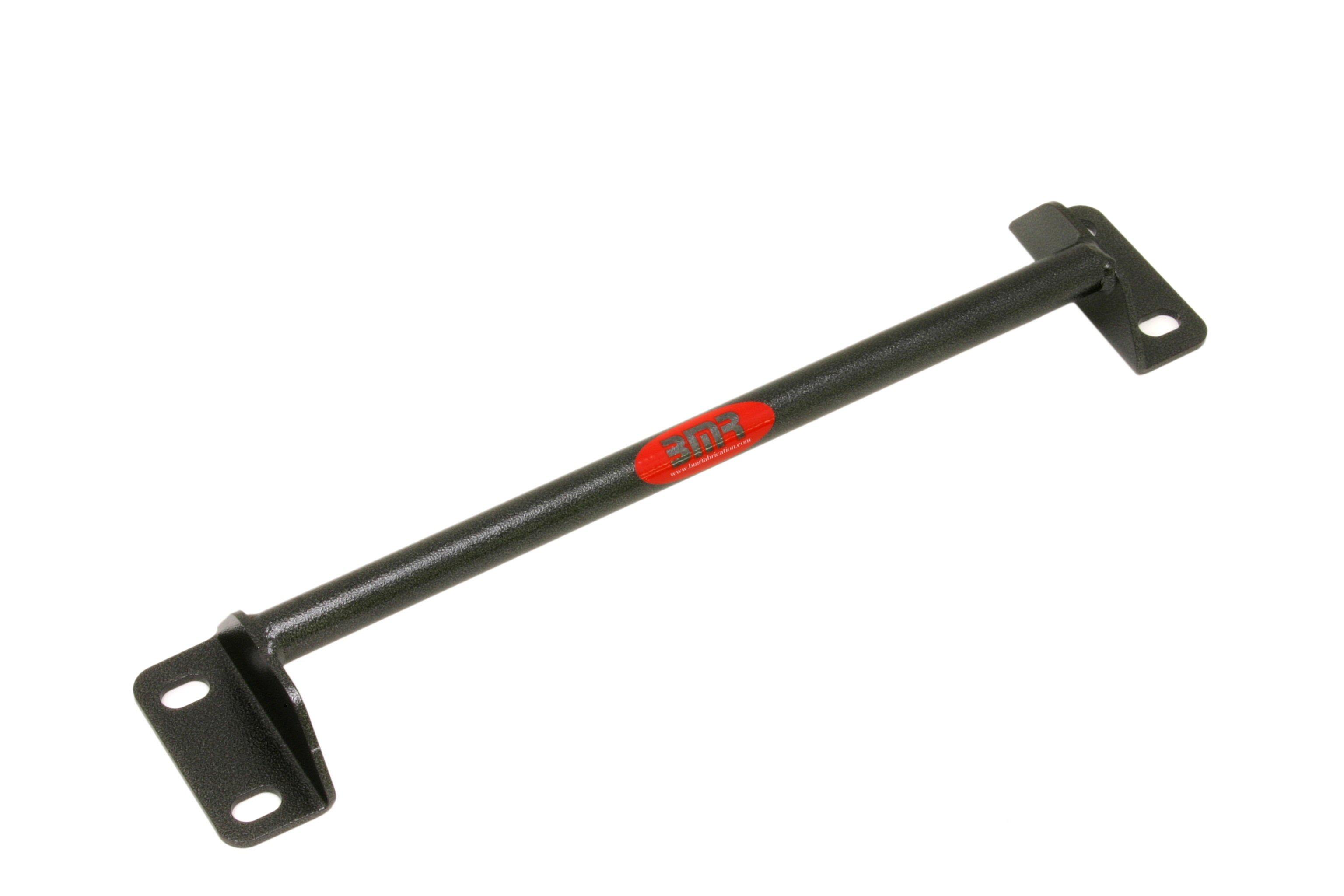

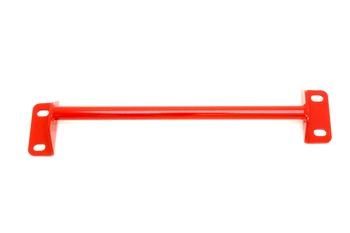

DTB001 - Driveshaft Tunnel Brace, Non-convertible Only

DTB001 - Driveshaft Tunnel Brace, Non-convertible Only
Part Number: DTB001 BMR Suspension Products are Made in USA!
Manufacturer: BMR Suspension
Price: $99.95

FREE SHIPPING!
Qty:
Color:
DTB001 - Driveshaft Tunnel Brace, Non-convertible Only DTB001 - Driveshaft Tunnel Brace, Non-convertible Only
Click for larger image

Description

Increase floor and driveshaft tunnel rigidity on your Fourth Gen GM F-body with a Driveshaft Tunnel Brace from BMR Suspension. Built from 1-inch DOM steel tubing and CNC laser-cut 3/16-inch steel plate, BMR's DTB001 Driveshaft Tunnel Brace is designed to support and stiffen the factory floor and tunnel brace. This increases chassis rigidity increasing the overall feel during aggressive maneuvering. BMR's DTB001's Driveshaft Tunnel Brace strengthens the floor and driveshaft tunnel for increased chassis stiffness. The design reinforces key points of the floor, effectively reducing deflection when lateral loads are applied to the chassis.

BMR Suspension designed the DTB001 Driveshaft Tunnel Brace for any application. This 100% bolt-on brace uses existing boltholes and hardware, allowing for easy installation with simple hand tools. Once installed, the Driveshaft Tunnel Brace reduces floor and driveshaft tunnel deflection with no change in NVH. This increases steering feel and stability on both the street and track.

***NOTE - WILL NOT FIT CONVERTIBLE CHASSIS. NOT COMPATIBLE WITH BMR TRAK PAK.***

BMR Suspension's DTB001 Driveshaft Tunnel Brace is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is less than1 hour. Proudly made in the U.S.A.!

Features

- 100% bolt-on design
- No fabrication needed
- Installs with simple hand tools
- Manufactured from 1-inch DOM steel tubing and CNC-laser cut 3/16-inch steel
- Reinforces the floor and driveshaft tunnel
- Used factory boltholes and hardware
- Works with stock and aftermarket headers and exhaust systems
- No change in NVH
- Durable powdercoat finish
- Available in black hammertone and red powdercoat
- Proudly designed in the U.S.A.
- Proudly built in the U.S.A.

Applications

1993 - 2002 Chevrolet Camaro

1993 - 2002 Pontiac Firebird

Available Colors


Black Hammertone
Black Hammertone
  Red
Red


Installation

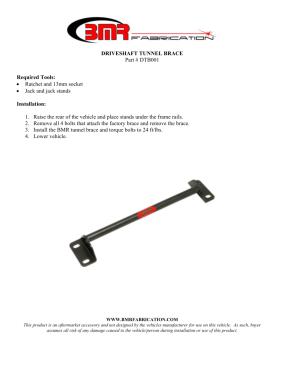

BMR Installation Instructions for DTB001
Click on the page above to view or download installation instructions for DTB001


CUSTOMERS WHO PURCHASED THIS ITEM, ALSO PURCHASED...
DSL001
DSL001
$159.95

1993-2002 F-Body
Driveshaft safety loop, non-convertible only
View Product Details
MTCA002
MTCA002
$359.95

1993-2002 F-Body
Lower control arms, chrome moly, on-car adjustable, polyurethane bushings
View Product Details
CAB002
CAB002
$89.95

1993-2002 F-Body
Control arm relocation brackets, bolt-on
View Product Details
PHR004
PHR004
$119.95

1993-2002 F-Body
Panhard rod relocation kit
View Product Details

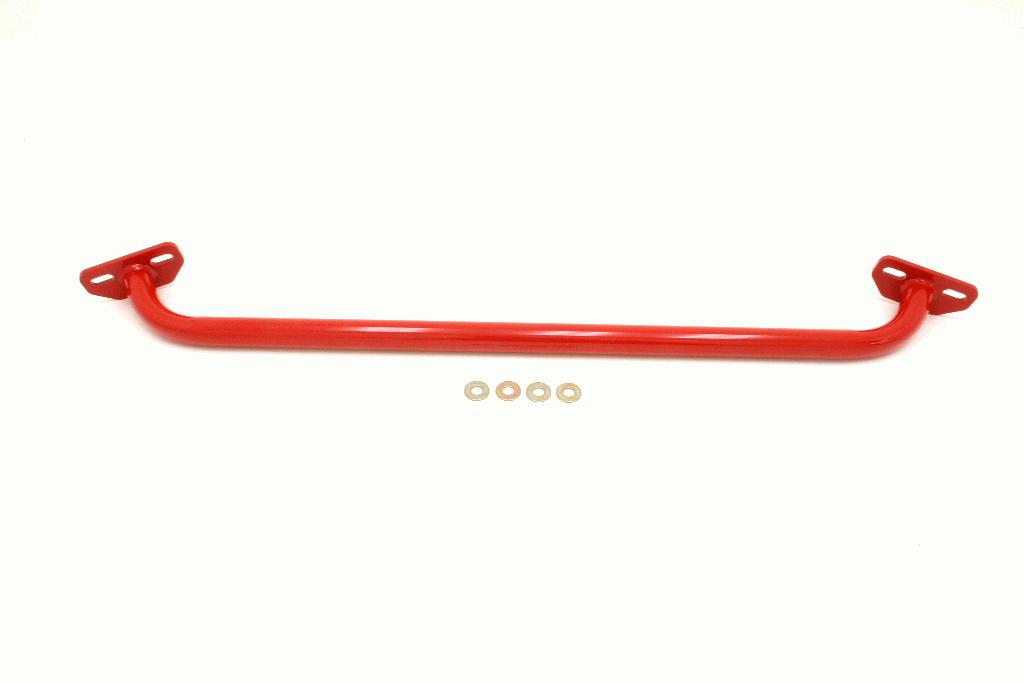

STB001
