Next BMR Category BMR Suspension - 2005 - 2014 Mustang - TCA019
TCA019

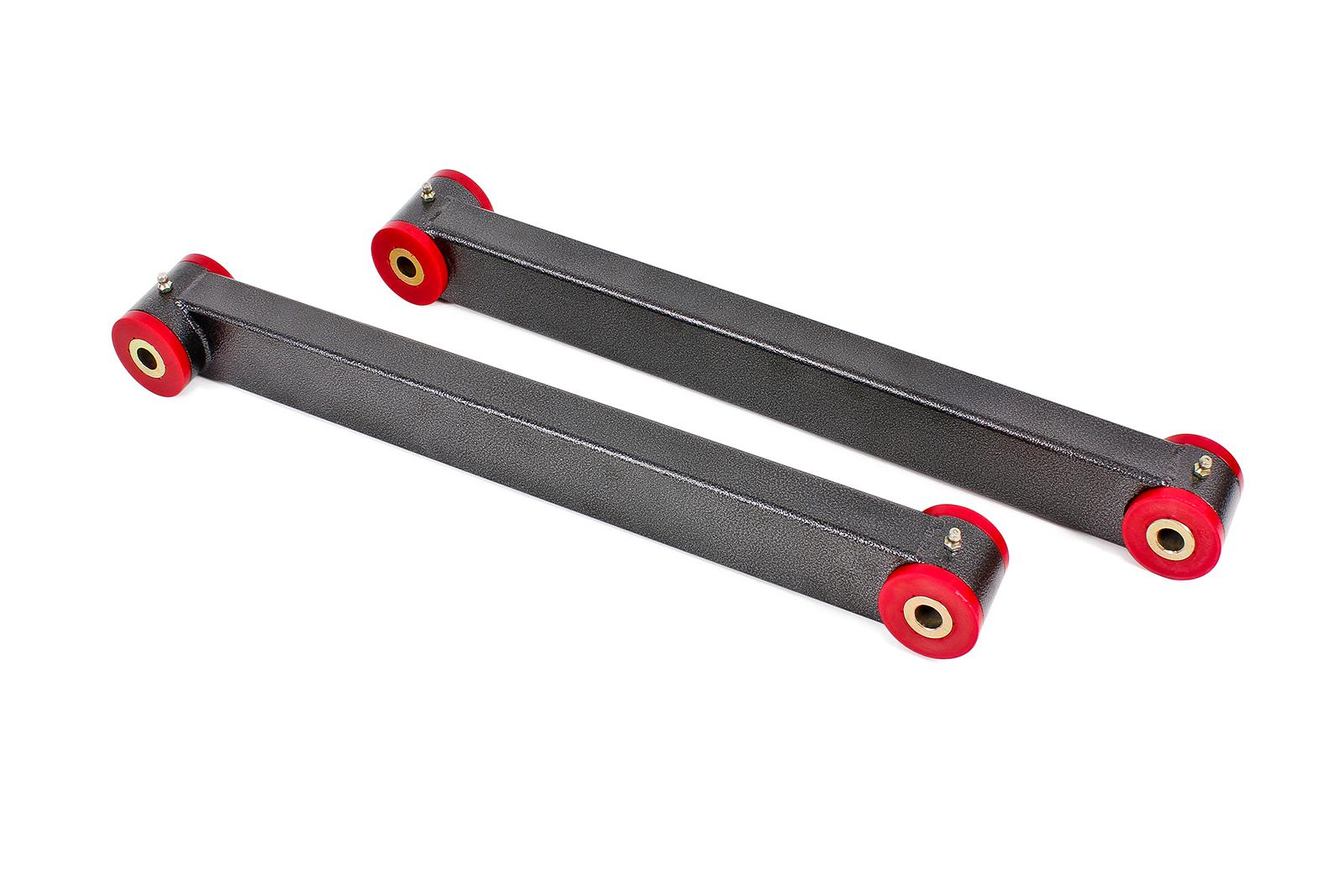

TCA019 - Lower Control Arms, Boxed, Non-adj, Poly Bushings

TCA019 - Lower Control Arms, Boxed, Non-adj, Poly Bushings
Part Number: TCA019 BMR Suspension Products are Made in USA!
Manufacturer: BMR Suspension
Price: $199.95

FREE SHIPPING!
Qty:
Color:
TCA019 - Lower Control Arms, Boxed, Non-adj, Poly Bushings TCA019 - Lower Control Arms, Boxed, Non-adj, Poly Bushings
Click for larger image

Description

Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2014 Mustang is easy with lower control arms from BMR Suspension. Stock stamped steel control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR’s polyurethane, non-adjustable tubular control arms for S197 Mustangs (TCA019) are TIG-welded using heavy-duty 1.25x2-inch boxed steel tubing. This design gives you a strong control arm that greatly improves performance. Greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR’s bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

BMR Suspension designed the TCA019 to work well in street performance, drag race, and road race applications. The stock control arms flex under cornering loads giving you inconsistent handling characteristics. Combine this with soft bushings that have massive amounts of deflection and you’re left with poor performance. The TCA019’s heavy-duty construction eliminates control arm flex, giving you much improved repeatability on the street, starting line, or in the corners. BMR’s polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. The bushings easily handle the high compression loads of hard launches and hard acceleration, yet offer plenty of articulation for great handling. These are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!

BMR Suspension’s TCA019 non-adjustable polyurethane lower control arms are available in red and black hammertone powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.


*To retain the factory geometry, ensure the offset end of the LCA is installed on the axle side, with the offset portion of the bushing facing towards the rear differential.

Features

- Fits all S197 Mustangs (2005-2014)
- Designed to the factory length
- High-durometer internally fluted polyurethane greasable bushings
- TIG-welded 1.25x2-inch boxed steel tubing
- Dramatically reduces control arms flex
- Greatly reduces bushing deflection
- Improved Performance with acceptable NVH levels
- Designed for street performance, drag race, and road race applications
- Durable powdercoat finish
- 1-2 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

Applications

2005 - 2014 Ford Mustang

Available Colors


Black Hammertone
Black Hammertone
  Red
Red


Installation

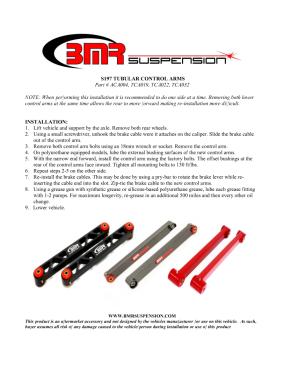

BMR Installation Instructions for TCA019
Click on the page above to view or download installation instructions for TCA019

Related Kit/Combos


View Details Rear Control Arm Package (Level 1)
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with ...
$259.00
Part#: CAP001
Application: 2005 - 2010 Mustang

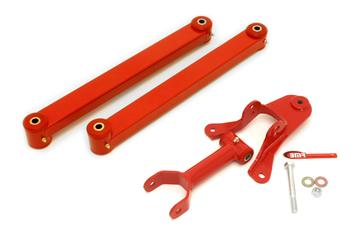

View Details Rear Control Arm Package (Level 2)
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with ...
$359.00
Part#: CAP002
Application: 2005 - 2010 Mustang

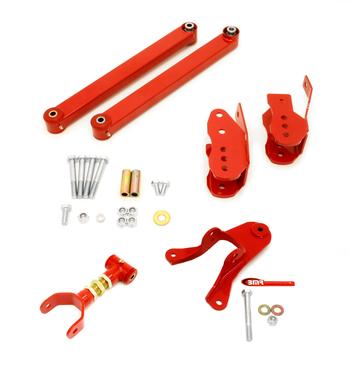

View Details Rear Control Arm Package (Level 3)
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with ...
$619.00
Part#: CAP003
Application: 2005 - 2010 Mustang

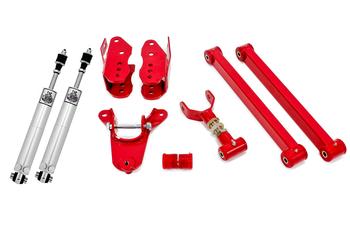

View Details Drag Race Package (Level 1)
BMR Suspension has taken the guesswork out of making huge launch improvements to the S197 Mustang, and put it all in one convenient package. Countless hours of design, engineering, and track ...
$1119.00
Part#: DRP001
Application: 2005 - 2010 Mustang
View Details Rear Control Arm Package (Level 1)
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with ...
$259.00
Part#: CAP001
Application: 2007 - 2010 Shelby GT500
View Details Rear Control Arm Package (Level 2)
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with ...
$359.00
Part#: CAP002
Application: 2007 - 2010 Shelby GT500
View Details Rear Control Arm Package (Level 3)
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2010 Mustang is easy with a control arm package from BMR Suspension. Stock stamped steel control arms with ...
$619.00
Part#: CAP003
Application: 2007 - 2010 Shelby GT500
View Details Drag Race Package (Level 1)
BMR Suspension has taken the guesswork out of making huge launch improvements to the S197 Mustang, and put it all in one convenient package. Countless hours of design, engineering, and track ...
$1119.00
Part#: DRP001
Application: 2007 - 2010 Shelby GT500
View Details Anti-Wheel Hop Package
Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2014 Mustang is easy with an Anti Wheelhop Package from BMR Suspension. Stock stamped steel control arms w ...
$339.00
Part#: AWP003
Application: 2005 - 2014 Mustang

CUSTOMERS WHO PURCHASED THIS ITEM, ALSO PURCHASED...
AAS001
AAS001
$69.95

2005-2014 Mustang
A-arm support brace
View Product Details
FC001
FC001
$34.95

2005-2014 Mustang
Camber Bolts, Front 2 degree offset
View Product Details
DSL011
DSL011
$169.95

2005-2014 Mustang
Rear tunnel brace with rear driveshaft safety loop
View Product Details
UCM001
UCM001
$109.95

2005-2014 Mustang

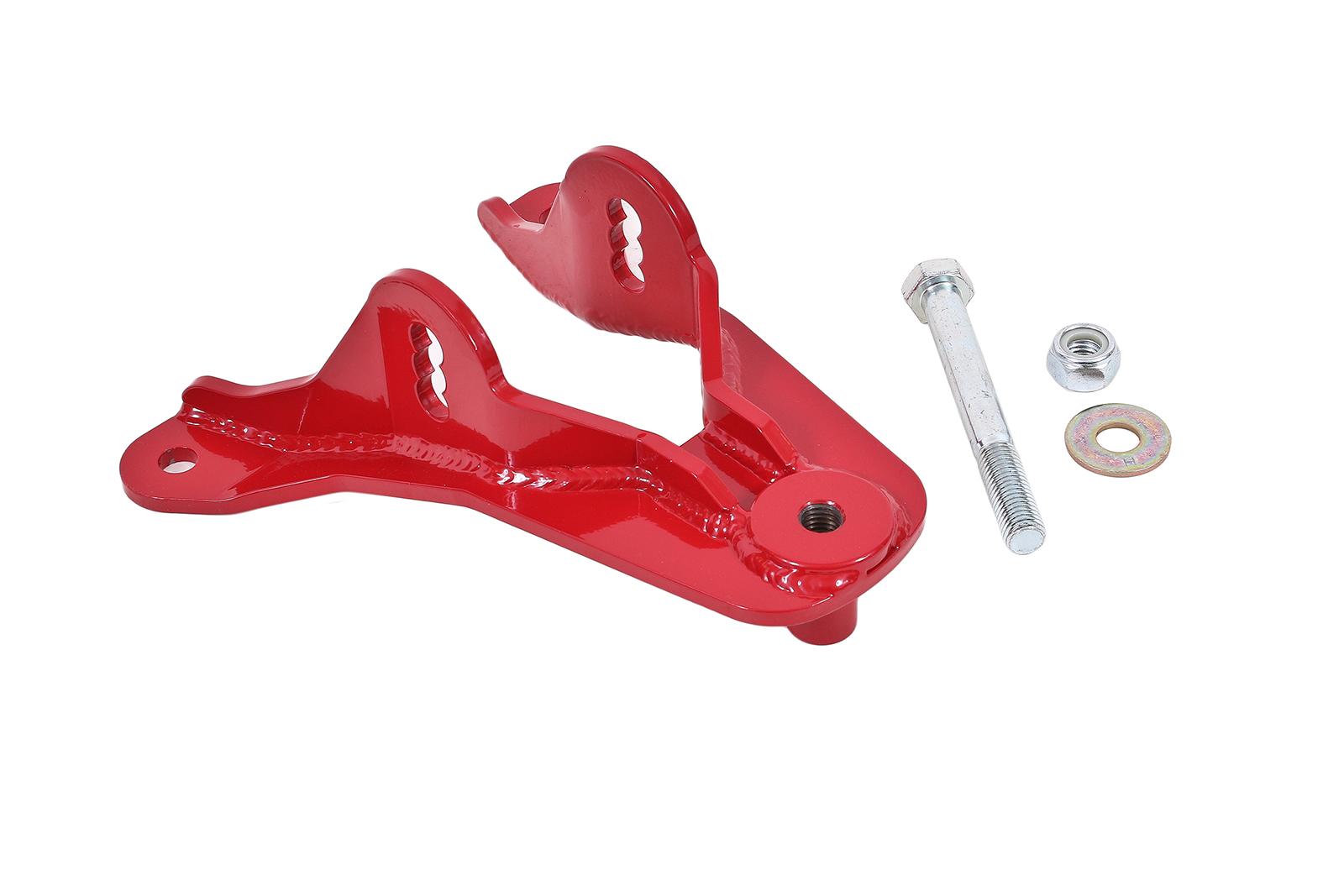

Upper control arm mount
View Product Details
UTCA017
UTCA017
$79.95

2005-2014 Mustang

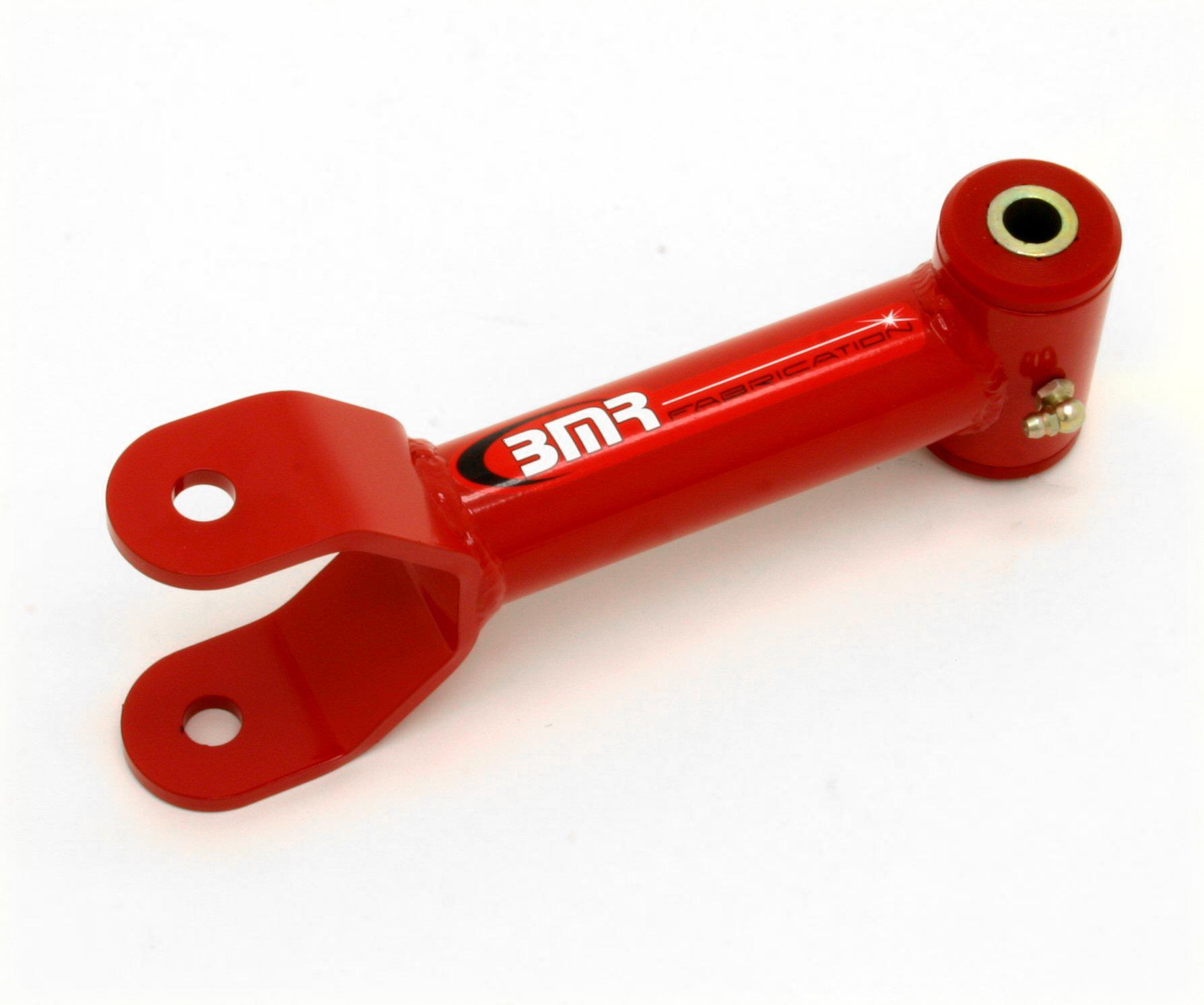

Upper control arms, DOM, non-adjustable, polyurethane bushings
